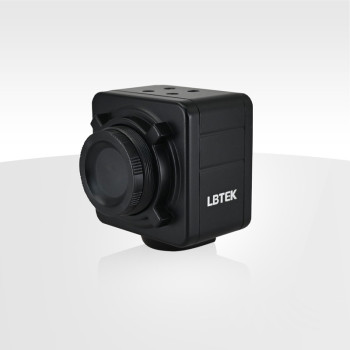

| Coad | 671344 | Type | Fixed-Gain Photodetector | |
| Dimension(mm) | 53.0 x 50.0 x 50.0 | Wavelength(nm) | 400 - 1100 | |
| Bandwidth (MHz) | DC-5 | Photosensitive Area Diameter (mm) | 2.5 x 2.5 | |
| Storage Temperature | -25 - 70℃ | Operating Temperature | 10 - 50℃ | |
| NEP | 5.3pW/√Hz | Rise Time | 68.0ns | |
| Maximum Optical Power | 118μW@850nm | Minimum Optical Power | 24nW@850nm | |
| Maximum Output Voltage | 0-3.5V（50Ω）0-7V（High-Z） | Sensitivity | - | |
| Power Supply | ±12.0 V DC，100mA | Electrical Output Type | BNC | |
| Peak Spectral Responsivity | 0.59A/W@850nm | Accumulated Noise (RMS) | 700.0μV | |
| Transimpedance Gain | 50kV/A（50Ω）100kV/A（High-Z） | Detector Type | Silicon photodetector |
Traders City price 386.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
