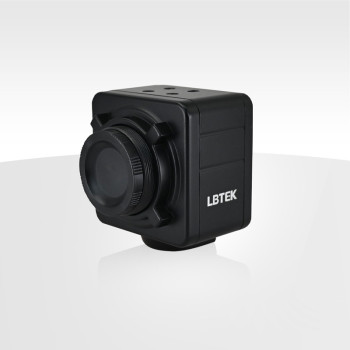

| Coad | 671342 | Type | Fixed-Gain Photodetector | |
| Dimension(mm) | 53.0 x 50.0 x 50.0 | Wavelength(nm) | 800 - 1700 | |
| Bandwidth (MHz) | DC-2 | Photosensitive Area Diameter (mm) | 3.00 | |
| Storage Temperature | -25 - 70℃ | Operating Temperature | 10 - 50℃ | |
| NEP | 63.0pW/√Hz | Rise Time | 175.0ns | |
| Maximum Optical Power | 778μW@1550nm | Minimum Optical Power | 180nW@1550nm | |
| Maximum Output Voltage | 0-3.5V（50Ω）0-7V（High-Z） | Sensitivity | - | |
| Power Supply | ±9.0 V DC，100mA | Electrical Output Type | BNC | |
| Peak Spectral Responsivity | 0.9A/W@1550nm | Accumulated Noise (RMS) | 800.0μV | |
| Transimpedance Gain | 5kV/A（50Ω）10kV/A（High-Z） | Detector Type | InGaAs photodetector |
Traders City price 954.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
