| Coad | 671282 | Type | Pyroelectric Laser Energy Meter | |
| Dimension(mm) | 56.0 x 22.0 | Wavelength(nm) | 190 - 25000 | |
| Maximum Incident Beam Diameter (mm) | 34.00 | Energy Measurement Range | 15μJ - 500mJ | |
| Connector Type | BNC-E Connector | Calibration Uncertainty | ±2% | |
| Maximum Power Density | 8.0MW/cm? | Maximum Average Power | 0.15W/cm? | |
| Maximum Energy Density | 80.0mJ/cm? | Maximum Repetition Rate | 25.0Hz@1.0MΩ | |
| Detector Coating | Black | Detector Cable Length | 1.5m |

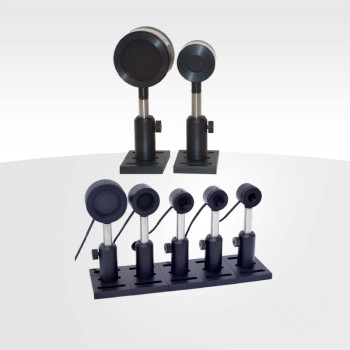

LBTEK pyroelectric laser energy meters offer three optional coatings: black, metal, and ceramic. The black and ceramic coatings operate over a wavelength range of 190 nm to 25 μm, while the metal coating covers 190 nm to 2.5 μm. Within these wavelength ranges, the energy meters provide a flat response. They feature a wide energy measurement range, capable of detecting pulse energies from 1 μJ to 15 J. Additionally, they offer a broad selection of detector areas, with maximum incident beam diameters ranging from 4 mm to 45 mm.
The general-purpose pyroelectric laser energy meter is designed for measuring pulsed lasers. The pyroelectric sensor converts the energy of light pulses into voltage pulses and is not suitable for continuous-wave laser measurement. Its black coating provides a flat absorption curve over the 190 nm–25 μm wavelength range, making it ideal for low-power, wavelength-independent energy measurements. The PEM20/45-HP model supports higher average power densities. The energy meter can be connected directly to an oscilloscope with a 1 MΩ input impedance or to the LBPEM710 meter via a BNC connector. To accommodate higher repetition rates when connected to an oscilloscope, the load resistance can be reduced. The general-purpose pyroelectric energy meter offers multiple effective detector areas: 4 mm, 8 mm, 11 mm, 20 mm, 21 mm, 34 mm, and 45 mm. Each unit includes a 1.5 m connection cable with BNC and E connectors at each end.
Note: The energy meter is supplied with a mounting post but does not include a base.
