| Code | 671274 | Type | Tunable Diode Laser | |
| Wavelength Tuning Range | 634nm – 643nm | Output Power | 1 – 40mW | |
| Beam Diameter (1/e²) | ~3.0mm | Beam Divergence (Full Angle) | < 1.0mrad | |
| Power Stability | < 1% (over 4h) | Wavelength Stability | < 10pm (over 1 h) | |
| Spectral Linewidth | < 0.1nm | Tuning Resolution | ~0.1nm (coarse tuning), 1 pm (fine tuning) | |
| Fine-Tuning Range | > 40GHz (60pm) | Polarization Extinction Ratio | > 100:1 (Vertical: ±5°) | |
| Operating Mode | CW | Beam Mode | Near TEM₀₀ | |
| Warm-Up Time | < 5 minutes | Operating Temperature | 20 – 30°C | |
| Operating Humidity | < 90% | Dimensions (L × W × H) | 165mm × 90mm × 70mm | |
| Weight | 3kg | Electrical Parameters | Drive Current: 0 – 270mA ，TEC: 7 – 12kΩ ，PZT Voltage: 0 – 100V |
Tunable Wavelength Coverage: Visible to Near-Infrared
Power Stability: < 1% (over 4 h)
Spectral Linewidth: < 0.1 nm

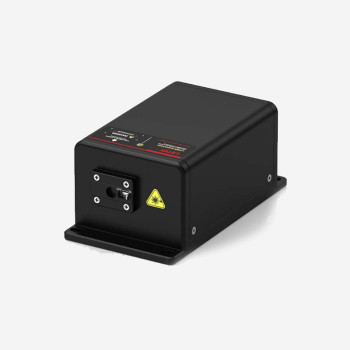

The LBTEK Tunable Diode Laser offers continuously tunable output wavelength within a defined range, with six selectable wavelength bands covering the visible to near-infrared spectrum. The laser’s controller features a touchscreen interface, allowing users to set the drive current, piezoelectric actuator voltage, and internal temperature with precision.
Each unit is supplied with 0.9 mm and 2.0 mm hex keys for wavelength tuning adjustments. The laser is characterized by its high stability, low noise, and narrow linewidth (< 0.1 nm). Tuning resolution reaches the picometer level, with a minimum wavelength tuning step of approximately 1 pm.
