| Code | 671270 | Type | Nanosecond Laser | |
| Operating Wavelength | 355nm | Output Power | 10W @ 40kHz | |
| Single Pulse Energy | 250μJ @ 40kHz | Repetition Rate | 30 – 150kHz | |
| Pulse Duration | < 25ns @ 40kHz | Beam Mode | TEM₀₀ | |
| M² Factor | < 1.3 | Beam Diameter | 0.8 ± 0.2mm | |
| Power Stability | < 3% RMS over 8 hours | Pulse Stability | < 3% RMS over 10 minutes | |
| Beam Divergence (Full Angle) | < 2 mrad | Trigger Modes | RS232, Gate, Trigger | |
| Cooling Method | Water-cooled | Polarization Ratio | > 100:1 | |
| Polarization Direction | Horizontal | Operating Temperature | 15°C – 35°C | |
| Operating Humidity | 10% – 80% (non-condensing) | Warm-Up Time | < 30 minutes |
Traders City price 4238.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Repetition Rate: 30 kHz – 150 kHz adjustable
Pulse Width: < 25 ns @ 40 kHz
Linear Polarization
Power Monitoring & Adjustment

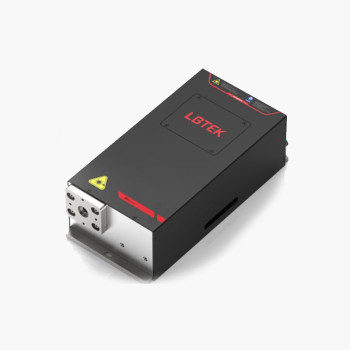

The Blitz Series Nanosecond Lasers deliver excellent beam quality, narrow pulse widths, and highly efficient, stable harmonic generation even under high-power operation. Laser parameters can be easily adjusted via the accompanying control software, enhancing operational convenience.
The output beam is linearly polarized, with a continuously adjustable repetition rate from 30 kHz to 150 kHz. At 40 kHz, the pulse width is < 25 ns, and the beam quality factor M² < 1.3.
Special Note: The LBNSA-355-5W model uses air cooling, while all other models in the series use water cooling.
