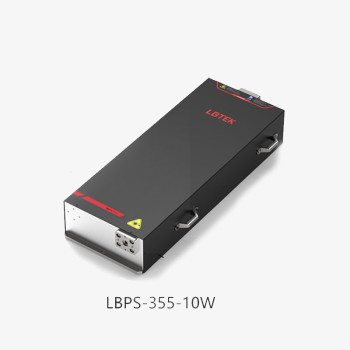

| Code | 671265 | Type | Picosecond Laser | |
| Operating Wavelength | 355nm | Output Power | 10W @ 400kHz | |
| Single Pulse Energy |
25μJ @ 400kHz | Repetition Rate | 1Hz – 2000kHz | |
| Pulse Duration |
< 15ps |
Beam Mode | TEM₀₀ | |
| M² Factor |
< 1.3 |
Beam Diameter | 1.5 ± 0.2mm | |
| Power Stability |
< 2% RMS over 10 minutes |
Beam Divergence (Full Angle) | < 2mrad | |
| Trigger Modes | Ethernet, Gate, Trigger |
Cooling Method | Water-cooled | |
| Polarization Ratio | > 100:1 | Polarization Direction | Horizontal | |
| Operating Temperature | 15 °C – 35 °C | Operating Humidity | 10% – 80% (non-condensing) | |
| Warm-Up Time | > 50 minutes |
Compatible with LBTEK Five-Axis Stainless Steel Fiber Stages FCSS-L5 / FCSS-R5
Precision Zirconia V-Groove Structure – designed for clamping fibers with diameters Ø125 μm – Ø280 μm and Ø150 μm – Ø341 μm
Soft Polyurethane Clamping Strip – provides excellent protection for fibers during clamping
The LBTEK FSV2 Fiber Holder is designed for mounting fibers onto the FCSS-5 series five-axis stainless-steel fiber positioning stages for precision alignment. The holder gently secures the fiber in a precision V-groove, with side screws used for tightening and locking the fiber in place. The bottom of the holder features a matching V-groove that fits directly onto the five-axis stage, ensuring accurate positioning. Additionally, the base has an M4 threaded hole, allowing direct mounting onto optical posts if needed.
