| Code | 671264 | Type | Fiber Clamp & Accessories | |
| Material | 304 stainless steel | Surface Treatment | Nickel-plated | |
| Clamping Diameter |
Ø125μm – Ø280μm | Included Accessory | 1 × hex key | |
| Bottom Mounting Hole |
M4 thread |
Compatible with LBTEK Five-Axis Stainless Steel Fiber Stages FCSS-L5 / FCSS-R5
Precision Zirconia V-Groove Structure – designed for clamping fibers with diameters Ø125 μm – Ø280 μm and Ø150 μm – Ø341 μm
Soft Polyurethane Clamping Strip – provides excellent protection for fibers during clamping

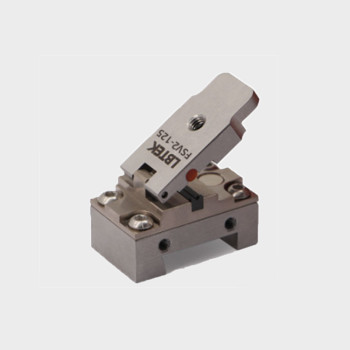

The LBTEK FSV2 Fiber Holder is designed for mounting fibers onto the FCSS-5 series five-axis stainless-steel fiber positioning stages for precision alignment. The holder gently secures the fiber in a precision V-groove, with side screws used for tightening and locking the fiber in place. The bottom of the holder features a matching V-groove that fits directly onto the five-axis stage, ensuring accurate positioning. Additionally, the base has an M4 threaded hole, allowing direct mounting onto optical posts if needed.
