| Coad | 671230 | Type | Honeycomb Optical Breadboard | |
| Length（mm） | 1200.00 | Width (mm) | 1200.00 | |
| Thickness(mm) | 50.00 | Flatness (mm) | ≤0.05 | |
| Material | High-Permeability Stainless Steel | Surface Roughness | ≤0.8μm | |
| Steel Plate Thickness | 5.0mm | Weight | 147.0kg | |
| Core Structure | Honeycomb Core Bonded Structure | Thread hole specification | M6 Single-Sided Threaded Through Hole | |
| Thread Hole Spacing | 25.0mm | Threaded Hole Edge Distance | 37.5mm | |
| Baseplate Thread Specification | M6 Single-Sided Threaded Through Hole x 4 | Baseplate Thread Spacing | 62.5mm | |
| Surface Treatment | Matte Dimpled Finish | |||

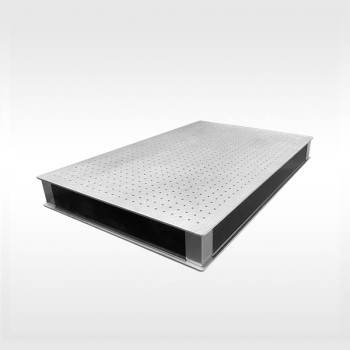

LBTEK’s standard honeycomb optical breadboards are designed as portable platforms with a full-steel construction, offering excellent thermal stability. The honeycomb core is bonded, resulting in lower residual stress, enhanced damping performance, and improved overall stability. The high-permeability stainless steel top surface is flat and suitable for building optical systems. Its matte dimpled finish reduces surface reflections and minimizes interference with optical setups.
The honeycomb breadboard has a total thickness of 50 mm, with a 5 mm thick stainless steel top plate. The top surface features a standard M6 single-sided threaded through-hole array with 25 mm spacing, and the outermost hole centers are positioned 37.5 mm from the edge, allowing convenient component mounting. The baseplate is equipped with four standard M6 single-sided threaded through holes, symmetrically distributed 62.5 mm from the edges, enabling secure installation and fixation of the honeycomb breadboard.
LBTEK standard honeycomb optical breadboards are manufactured to national precision-grade standards. The tabletop is made of high-permeability stainless steel with a matte dimpled finish, which minimizes surface light emission and reduces its impact on optical systems. The honeycomb core is processed with a bonded structure, resulting in lower stress release, better damping performance, and higher overall stability.
The tabletop features an M6 single-sided threaded through-hole array with 25 mm spacing and 37.5 mm edge distance, while the baseplate includes four symmetrically distributed M6 single-sided threaded through holes with a 62.5 mm edge distance. The hole specifications and layout are designed to facilitate flexible and convenient optical system integration.
