| Coad | 671036 | Type | Precision Pinhole | |
| Housing Diameter (mm) | 25.40 | Housing Thickness (mm) | 4.10 | |
| Pinhole Diameter (μm) | 20 ± 2 | Pinhole Metal Sheet Thickness (μm) | 25.00 | |
| Housing Material | 6061-T6 Aluminum Alloy | Pinhole Metal Sheet Material | Copper | |
| Surface Treatment | Black Anodized | |||
LBTEK precision pinholes are suitable for applications in optical alignment, beam adjustment, and imaging. They feature a Ø25.4 mm aluminum housing and can be mounted in Ø25.4 mm holders. In spatial filtering systems, the pinholes themselves are extremely thin and may be easily damaged under high-power conditions. It is recommended to complete alignment under low-power conditions before switching to high-power use. Due to the thinness of the metal sheet, slight edge deformation may occur on some pinholes, but this does not affect their function or performance.

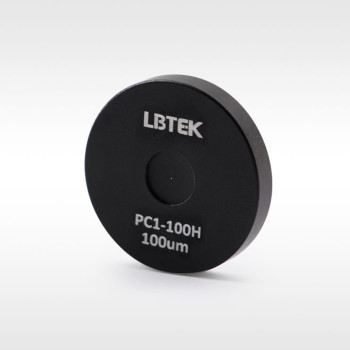

LBTEK copper high-energy precision pinholes are available with diameters ranging from Ø5 μm to Ø100 μm. The copper pinhole sheet is gold-coated on the front side and blackened on the back side. It is mounted in a Ø25.4 mm aluminum housing, allowing convenient installation into Ø25.4 mm mounts.
Note: The pinhole metal sheet is very thin, and minor edge deformation may occur in some products. However, this does not affect the pinhole’s function or usability.
