| Code | 671006 | Type | 30mm Coaxial Magnetic Quick-Release Cube | |
| Surface Finish | Black anodized | Material | 6061-T6 aluminum alloy | |
| Peripheral Optic Size |
Ø25.4mm | Max Peripheral Optic Thickness | 6.4mm | |
| Center Optic Size |
25mm × 25mm × 25mm |
Peripheral Optic Mounting | Secured with retaining rings | |
| Type |
Insert |
Individual cube inserts available for easy switching of transmission direction
Base compatible with 30 mm coaxial systems and SM1 lens tubes
One output port has a 3° tilt to minimize unwanted reflections
Cube insert allows mounting Ø25.4 mm optics on four sides
Center slot supports rectangular optics up to 36 mm × 25 mm × 2 mm

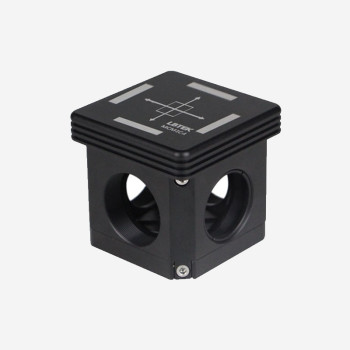

LBTEK Magnetic Quick-Release Cube is designed for fluorescence filter assemblies. The cube insert can hold four Ø25.4 mm optical elements using retaining rings on all four sides. Inside the insert, a magnetic removable 45° rectangular mount is spring-loaded and secured/released with a single screw.
MCM1: Center optic size 36 mm × 25 mm × 1 mm; side optics up to 6 mm thick at 3° tilt
MCM1S: Center optic size 36 mm × 25 mm × 2 mm; side optics up to 4.5 mm thick at 3° tilt
One output port of the cube is tilted at 3° relative to the surface (marked EM2) to reduce stray reflections, as shown in the figure.
