| Code | 670939 | Type | Dovetail 60mm Coaxial System Mount | |
| Compatible Optic Diameter | Ø50.8mm | Max Optic Thickness | 4mm | |
| Material |
6061-T6 aluminum alloy | Surface Finish | Black anodized | |
| System Compatibility | 60 mm coaxial system | Optic Mounting Method | Dual retaining rings | |
| Mounting Style |
Dovetail rail |
Coaxial Center Height |
50mm |
|
| Dimensions |
71mm × 91mm × 9mm |
Weight |
0.085kg |
Mounts a 60 mm coaxial system onto a dovetail rail
Dovetail clamping allows positioning and locking anywhere along the rail
Coaxial center height: 50 mm above the rail surface
LBTEK Dovetail 60 mm Coaxial System Mount is designed for constructing 60 mm coaxial systems along a dovetail rail. The dovetail clamping base allows the component to be inserted at any position along the rail and secured by tightening M2 hex screws.

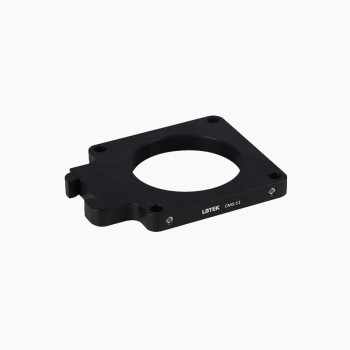

The coaxial plate CMS-11 features an SM2 internal thread at the center for directly mounting Ø50.8 mm optical components up to 4 mm thick. Four M4 set screws on the sides are used to secure Ø6.0 mm coaxial mounting rods.
The clip-in mount CMS-12 includes two flexible clamping sections that allow quick and secure insertion of 60 mm coaxial system components, with two M3 set screws on the sides for locking. The coaxial center height achieved with CMS-11 and CMS-12 is 50 mm.
