| Code | 670938 | Type | Dovetail 30mm Coaxial System Mount | |
| Material | 6061-T6 aluminum alloy | Surface Finish | Black anodized | |
| System Compatibility |
30mm coaxial system | Compatible Optic Diameter | Ø25.4mm | |
| Max Optic Thickness | 4.8mm | Optic Mounting Method | Dual retaining rings | |
| Mounting Style |
Dovetail rail |
Coaxial Center Height |
30mm |
|
| Dimensions |
40.5mm × 56mm × 9mm |
Weight |
0.036kg |
Mounts a 30 mm coaxial system onto a dovetail rail
Dovetail clamping allows positioning and locking anywhere along the rail
Coaxial center height: 30 mm or 50 mm above the rail surface
LBTEK Dovetail 30 mm Coaxial System Mount is designed for building 30 mm coaxial systems along a dovetail rail. The dovetail clamping base allows the mount to be inserted at any position along the rail and secured by tightening M2 hex screws.

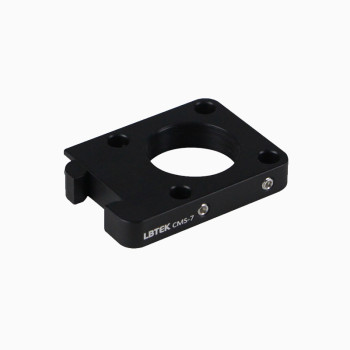

The coaxial plate CMS-7 features an SM1 internal thread at the center for directly mounting Ø25.4 mm optical components up to 4.8 mm thick. Four M4 set screws on the sides are used to secure Ø6.0 mm coaxial mounting rods.
Clip-in mounts CMS-8 and CMS-10 feature two flexible clamping sections that allow quick and secure insertion of 30 mm coaxial system components, with two M3 set screws on the sides to lock the components in place. The coaxial center heights achieved with CMS-7, CMS-8, and CMS-10 are 30 mm, 30 mm, and 50 mm respectively.
