| Code | 670936 | Type | Coaxial System Orthogonal Turning Plate | |
| Material | 6061-T6 aluminum alloy | Surface Finish | Black anodized | |
| Max Optic Thickness |
6mm | Compatible Optic Diameter | Ø25.4mm | |
| Center Hole | SM1-threaded through hole | System Compatibility | Converts 30mm coaxial system to 60mm coaxial system |
Traders City price 46.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Material: 6061-T6 aluminum alloy
Mounts a 30 mm coaxial system vertically onto a 60 mm coaxial system
Features SM1 internal thread for SM1 lens tubes and Ø25.4 mm optical elements

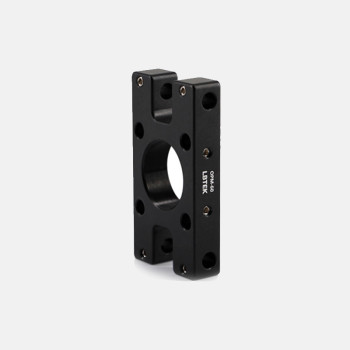

LBTEK’s coaxial orthogonal turning plate OPM-60 enables vertical mounting of a 30 mm coaxial system onto a 60 mm coaxial system. The front Ø6 mm rod mounting hole is secured with an M4 set screw, and the side Ø6 mm rod is also fixed with an M4 set screw, both tightened using a 2 mm hex key. The center features an SM1-threaded through hole for mounting Ø25.4 mm optical elements up to 6 mm thick. SM1R retaining rings are sold separately.
