| Code | 670934 | Type | 30mm Coaxial System – Rod Adapter | |
| Material | 6061-T6 aluminum alloy | Surface Finish | Black anodized | |
| Compatible Optics Diameter |
Ø25.4mm | Clamping Diameter | Ø12.7mm | |
| Distance (Rod Center to Coaxial Front Panel) | 10mm | Locking Screw | M6 knurled hex socket thumb screw |
Mount Ø12.7 mm rods and components into the coaxial system.
Ø6 mm coaxial rods are secured with set screws, while Ø12.7 mm optical rods are fixed with a knurled thumb screw.
The center features an SM1-threaded through hole.

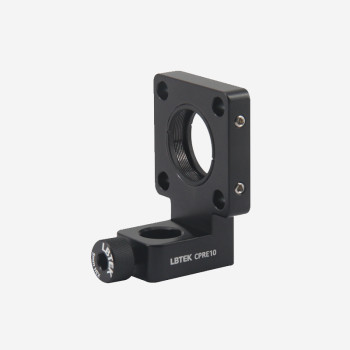

LBTEK’s coaxial-to-rod adapter holds standard Ø12.7 mm rods, with a groove inside the bottom wall forming dual-line contact with the rod. The side is equipped with an M6 spring-loaded knurled hex socket thumb screw, which can be further tightened with a 5 mm hex key (Note: excessive torque may break the screw. It is recommended to use an L-shaped hex key and apply light force).
This adapter can be integrated into a 30 mm coaxial system and can also mount Ø25.4 mm optical components. For height adjustment, the base has a through hole allowing the rod to pass completely through, enabling flexible positioning of optical elements.
