| Coad | 670918 | Type | 30mm Coaxial Cube | |
| Dimension(mm) | 55.0 x 55.0 x 52.0 | Clear Aperture（mm） | 25.40 | |
| Top/Bottom Cover Thread Specification | SM1&M3 / SM1&M3 | Side Thread Specification | Side SM1 Thread and Front / Rear 6mm Through Holes | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodized |

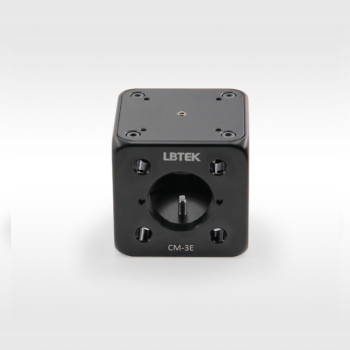

LBTEK coaxial cubes are designed for 30 mm coaxial systems, featuring four side SM1-threaded through holes. The CM-3T model includes M3-threaded holes on all four sides, while the CM-3E model has Ø6 mm through holes on the front and rear faces. Each cube kit comes with two cover plates, available in two versions: one with a central SM1-threaded through hole and the other with a central M4-threaded through hole.
LBTEK coaxial cubes include CM-3E-K1, CM-3E-K2, CM-3E-K3, and CM-3E, all featuring Ø6 mm through holes on the front and rear faces, SM1-threaded through holes and M3-threaded holes on the sides, and compatible with 30 mm coaxial systems. CM-3E-K1 includes side SM1-threaded through holes, top and bottom cover plates with central M4-threaded through holes, and one M4 × 12 cap screw. CM-3E-K2 features SM1-threaded through holes and M3-threaded holes on all six faces. CM-3E-K3 has Ø6 mm through holes on the front and rear, a top cover plate with an SM1-threaded through hole, a bottom cover plate with an M4-threaded through hole, and SM1-threaded through holes on five faces. CM-3E has no cover plates and only side SM1-threaded through holes with Ø6 mm through holes on the front and rear faces.
