| Coad | 670915 | Type | 30mm Coaxial Cube | |
| Dimension(mm) | 55.0 x 55.0 x 52.0 | Clear Aperture（mm） | 25.40 | |
| Top/Bottom Cover Thread Specification | SM1&M3 / SM1&M3 | Side Thread Specification | SM1&M3 | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodized |

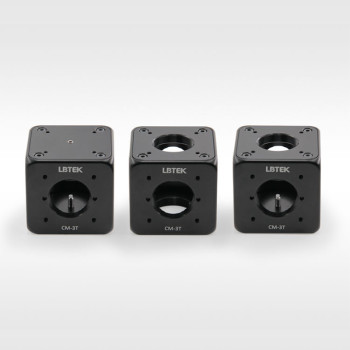

LBTEK coaxial cubes are designed for 30 mm coaxial systems, featuring four side SM1-threaded through holes. The CM-3T model includes M3-threaded holes on all four sides, while the CM-3E model has Ø6 mm through holes on the front and rear faces. Each cube kit comes with two cover plates, available in two versions: one with a central SM1-threaded through hole and the other with a central M4-threaded through hole.
LBTEK coaxial cubes and kits include CM-3T, CM-3T-K1, CM-3T-K2, and CM-3T-K3. All models feature SM1-threaded through holes on the sides and M3-threaded holes, which can be used to connect Ø6 mm coaxial posts. CM-3T-K1 has side SM1-threaded through holes and top and bottom cover plates with central M4-threaded through holes, each supplied with an M4 × 12 cap screw. CM-3T-K2 provides SM1-threaded through holes on all six faces. CM-3T-K3 features a top cover plate with a central SM1-threaded through hole, a bottom cover plate with an M4-threaded through hole, and SM1-threaded through holes on five faces. CM-3T has no cover plates and includes only side SM1-threaded through holes. All models are compatible with 30 mm coaxial systems.
