| Coad | 670911 | Type | Coaxial System ?4mm Mounting Post | |
| Diameter(mm) | 4.00 | Length（mm） | 150.00 | |
| Quantity | 1 | Top Screw Specification | M3×6 Cup-Point Set Screw | |
| Minimum Scale Division | 1.0mm | Engraving Tolerance | ± 0.1mm | |
| Material | 303 Stainless Steel | |||

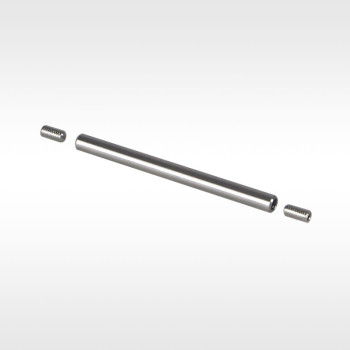

LBTEK coaxial system mounting posts are made of stainless steel with a Ø4 mm diameter, compatible with 16 mm coaxial systems. Two versions are available: rotatable and non-rotatable (straight) posts, with lengths ranging from 6.5 mm to 200 mm. Each post is equipped with M3 cup-point set screws at both ends, allowing multiple posts to be connected for extended length.
LBTEK coaxial system mounting posts are made of stainless steel with a Ø4 mm diameter, compatible with 16 mm coaxial systems. They are available in multiple lengths from 6.5 mm to 200 mm. Each end is equipped with M3 cup-point set screws, tightened or removed with a 1.5 mm hex key, and multiple posts can be connected to extend the overall length. Products in 100 mm and 150 mm lengths are offered in two versions: plain and with engraved scales (-E). Custom engraving is available for other lengths.
