| Coad | 670890 | Type | Coaxial System ?6mm Mounting Post | |
| Diameter(mm) | 6.00 | Length（mm） | 100.00 | |
| Quantity | 1 | Top Screw Specification | M3×6 Cup-Point Set Screw | |
| Minimum Scale Division | - | Engraving Tolerance | - | |
| Material | 303 Stainless Steel | |||

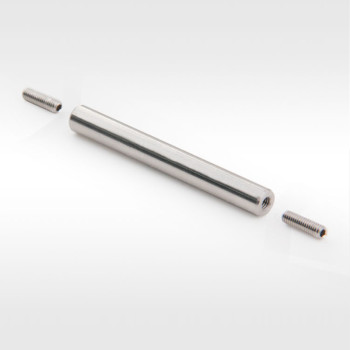

LBTEK Coaxial System Mounting Posts are made of stainless steel with a Ø6 mm diameter, compatible with 30 mm and 60 mm coaxial systems. They are available in various lengths from 6.5 mm to 500 mm. Each post features a top M3 cup-point set screw and is offered in detachable or integrated versions. Multiple posts can be connected in series to extend the overall length.
LBTEK coaxial system mounting posts are made of stainless steel with a Ø6 mm diameter, compatible with both 30 mm and 60 mm coaxial systems. They are available in multiple lengths from 6.5 mm to 500 mm. Each end is equipped with M3 cup-point set screws, tightened or removed with a 1.5 mm hex key, and multiple posts can be connected to extend the total length. Products in 100, 150, 200, and 250 mm lengths are offered in three versions: plain, with engraved scales (-E), and with scales plus numeric markings (-EN). Custom engraving is available for other lengths.
