| Coad | 670851 | Type | 60mm Coaxial System Mirror Mount | |
| Optical Component Diameter (mm) | 50.80 | Optical Element Thickness (mm) | 4.00（MIN） | |
| Adjustable Linear Travel Range (mm) | ±3.0 | Pitch/Yaw Adjustment Range (°) | ±3.0 | |
| Clear Aperture | 48.3mm | Adjustment Precision | 0.2 °/turn | |
| Material | 6061-T6 Aluminum Alloy | Adjuster Specification | M6×0.25 x 3 | |
| Mounting Hole Specifications | M4 x 3 | Optic Mounting Hole Specification | Smooth-Bore Hole | |
| Optic Mounting Method | Setscrew Mount | Surface Treatment | Black Anodized | |
| Included Retaining Ring | - | |||

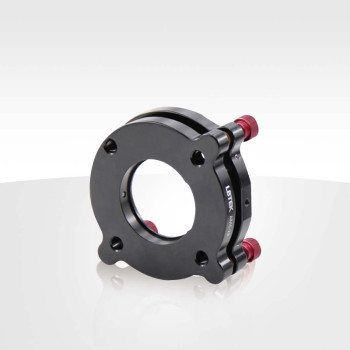

LBTEK 3-axis mirror mounts are compatible with 60 mm cage systems and are designed for mounting and aligning mirrors within the system. Two mounting options are available: dual retaining ring mounting (AMC-2A) and setscrew mounting (AMC-2B). AMC-2A features an SM2-threaded through hole and includes two SM2R retaining rings, suitable for mounting Ø50.8 mm optics up to 5.2 mm thick. The SM2 threading is fully compatible with all LBTEK mechanical components with SM2 threads. AMC-2B features a Ø50.8 mm smooth-bore hole and secures optics with an M4 setscrew (compatible with a 2 mm hex key), supporting optics with a minimum thickness of 4 mm. The rear panel includes four Ø6 mm through-holes for 60 mm cage system rods, with M3 side setscrews (compatible with a 1.5 mm hex key) to secure the rods. Three M6 × 0.25 adjusters provide precise tip/tilt adjustment of ±3° with a resolution of 0.2°/rev, as well as ±3 mm linear travel. The uniquely designed knobs provide higher torque and can also be adjusted and locked with a 2 mm hex key. The rear panel features three M4-threaded holes for direct mounting to optical posts.
The B-type 60 mm cage system mirror mount features a Ø50.8 mm smooth-bore hole and secures optics using an M4 setscrew (compatible with a 2 mm hex key), suitable for Ø50.8 mm optics with a minimum thickness of 4 mm. The rear panel includes four Ø6 mm through-holes for integration into 60 mm cage systems, with M3 side setscrews (compatible with a 1.5 mm hex key) for rod locking. Three M4-threaded holes on the rear panel allow direct mounting to optical posts.
