| Coad | 670849 | Type | 60mm Coaxial System XY Translation Mount | |
| Optical Component Diameter (mm) | 50.80 | Optical Element Thickness (mm) | 15.50（MAX） | |
| XY Travel Range (mm) | ±2.0 | XY Adjustment Accuracy (mm/turn) | 0.25 | |
| Clear Aperture | 48.3mm | Graduation Accuracy | - | |
| Indicator Line Spacing | - | Rotation Angle | - | |
| Material | 6061-T6 Aluminum Alloy | Adjuster Specification | M5 x 0.25 x 2 | |
| Center Threaded Hole Specifications | SM2 Internal Thread | Bottom Threaded Hole Specifications | - | |
| Mounting Hole Specifications | - | Optic Mounting Method | 60mm Cage System Mounting | |
| Surface Treatment | Black Anodized | Included Retaining Ring | SM2R x 1 |
LBTEK XY translation stages are designed for mounting Ø25.4 mm or Ø50.8 mm optics. The front surface features travel scale indicators. Each of the four Ø6 mm through-holes has an M3 setscrew (compatible with a 1.5 mm hex key) for securing Ø6 mm cage rods. TXY2 Translation Stage – Features SM2 internal threads for mounting Ø50.8 mm optics up to 15.5 mm thick and includes one SM2R retaining ring. TXYR1 XY Translation and Rotation Stage – Features SM1 internal threads on the front for mounting Ø25.4 mm optics up to 20.5 mm thick and includes one SM1R retaining ring. The back panel has SM2 internal threads for attaching SM2 lens tubes or SM2-series adapters. The stage allows 360° continuous rotation, with 1° scale graduations and 1 mm indicator line spacing.

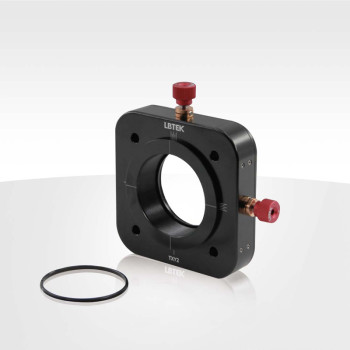

TXY2 is equipped with two adjusters, allowing fine adjustment of the optic position in the X and Y directions with a travel range of ±2 mm. The XY translation module features SM2 internal threads and includes one SM2R retaining ring for mounting Ø50.8 mm optics up to 15.5 mm thick. It is also compatible with SM2 lens tubes and SM2-series adapters. TXY2 is fully compatible with 60 mm cage systems, with setscrews on all sides for securing Ø6 mm cage rods. Both the bottom and side panels feature M6-threaded mounting holes. The bottom has three threaded holes with 25 mm spacing for direct mounting to optical posts.
