| Coad | 670847 | Type | 30mm Coaxial System Mirror Mount | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | 7.50(MAX) | |
| Adjustable Linear Travel Range (mm) | ±3.0 | Pitch/Yaw Adjustment Range (°) | ±4.0 | |
| Adjustment Precision | 0.32 °/turn | Clear Aperture | 23.0mm | |
| XY Travel Range | ±1.0mm | Dimensions | 67.0 x 67.0 x 40.0mm(Height Adjustable) | |
| Material | 6061-T6 Aluminum Alloy | Adjuster Specification | M6×0.25 x 3 | |
| Mounting Hole Specifications | M4 Tapped Hole x 2 | Optic Mounting Hole Specification | SM1-Threaded Through Hole | |
| Optic Mounting Method | Dual Retaining Ring Mounting | Surface Treatment | Black Anodized | |
| Weight | 0.33kg | Included Retaining Ring | SM1R x 2 | |
| Included Wrench | 2.0mm Hex Key x 1 | |||

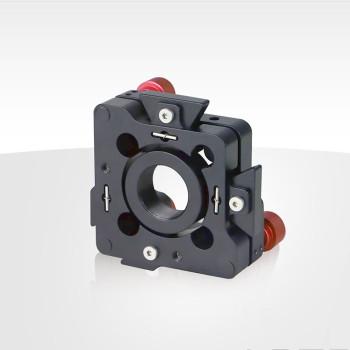

LBTEK cage system mounts are compatible with 30 mm cage systems and are designed for mounting and aligning mirrors within the system. Two mounting options are available: dual retaining ring mounting (AMC-1A, TXY1SM1) and setscrew mounting (AMC-1B). AMC-1A and TXY1SM1 feature SM1-threaded through holes and include two SM1R retaining rings, suitable for mounting Ø25.4 mm optics. The SM1 thread is compatible with all LBTEK mechanical components with SM1 threading. AMC-1B has a Ø25.4 mm smooth-bore hole and secures optics using an M4 setscrew (compatible with a 2 mm hex key), supporting optics with a minimum thickness of 3 mm. The rear panel of the mount includes four Ø6 mm through-holes for 30 mm cage system rods and side M3 or M4 setscrews for rod locking. Three M6×0.25 adjusters provide precise tip/tilt adjustment with a resolution of 0.32°/rev and allow for up to ±3 mm of linear travel. The uniquely designed adjustment knobs provide higher torque and can also be operated or tightened with a 2 mm hex key. The rear panel also includes an M4-threaded hole for direct optical post mounting.
The TXYSM1 mirror mount features a central SM1 (1.035"-40) threaded bore and includes an SM1R retaining ring for direct mounting of Ø25.4 mm optics up to 7.5 mm thick. The rear panel has four Ø6 mm through-holes, making it fully compatible with 30 mm cage systems. The sliding plate provides ±1 mm coarse XY adjustment. The mount is equipped with three adjusters with a resolution of 0.32°/rev, allowing ±4° tip/tilt adjustment of the front plate and up to ±3 mm linear travel. Each adjustment axis can be individually locked. The rear panel also includes an M4-threaded hole for direct optical post mounting.
