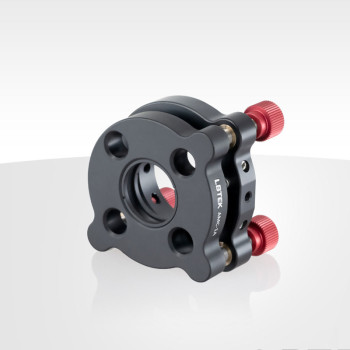

| Coad | 670845 | Type | 30mm Coaxial System Mirror Mount | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | 5.50（MAX） | |
| Adjustable Linear Travel Range (mm) | ±3.0 | Pitch/Yaw Adjustment Range (°) | ±5.0 | |
| Adjustment Precision | 0.32 °/turn | Clear Aperture | 23.0mm | |
| XY Travel Range | - | Dimensions | - | |
| Material | 6061-T6 Aluminum Alloy | Adjuster Specification | M6×0.25 x 3 | |
| Mounting Hole Specifications | M4 Tapped Hole x 3 | Optic Mounting Hole Specification | SM1-Threaded Through Hole | |
| Optic Mounting Method | Dual Retaining Ring Mounting | Surface Treatment | Black Anodized | |
| Weight | - | Included Retaining Ring | SM1R x 2 | |
| Included Wrench | - | |||
Traders City price 93.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
