| Coad | 670841 | Type | 30mm Coaxial System Translation Stage | |
| Optical Component Diameter (mm) | 12.70 | Optical Element Thickness (mm) | 10.00(MAX) | |
| XY Travel Range (mm) | ±1.0 | XY Adjustment Accuracy (mm/turn) | 0.25 | |
| Clear Aperture | 11.4mm | Material | 6061-T6 Aluminum Alloy | |
| Adjuster Specification | M4×0.25 x 2 | Center Threaded Hole Specifications | SM05 Internal Thread | |
| Surface Treatment | Black Anodized | Included Retaining Ring | SM05R x 1 |
The LSC-13L cage translation stage mounts onto two Ø6 mm cage rods, allowing optics on the movable carriage to translate along the optical axis. Optic mounting bases are available in three versions: LSC-13LA fixed type, LSC-13LB XY translation type, and LSC-13LC rotational type, enabling position and rotation adjustment to compensate for cumulative assembly tolerances.

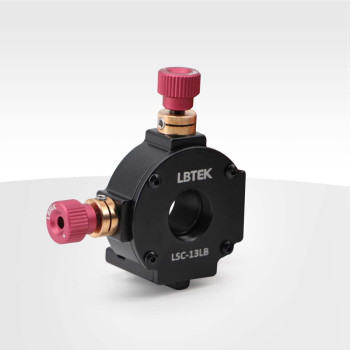

The LSC-13LB is designed for mounting Ø12.7 mm optics and features two adjusters for fine positioning in the X and Y directions, with a travel range of ±1 mm. The SM05-threaded bore accommodates Ø12.7 mm optics up to 10 mm thick (an SM05R retaining ring is included for secure mounting) and allows connection to SM05 lens tubes or adapters. The screw pairs are equipped with M3 locking screws, which can be tightened using a 1.5 mm hex key.
