| Coad | 670840 | Type | 30mm Coaxial System Translation Stage | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | 7.00（MAX） | |
| XY Travel Range (mm) | - | XY Adjustment Accuracy (mm/turn) | - | |
| Clear Aperture | 23.5mm | Material | 6061-T6 Aluminum Alloy | |
| Adjuster Specification | - | Center Threaded Hole Specifications | SM1 Internal Thread | |
| Surface Treatment | Black Anodized | Included Retaining Ring | SM1R x 1 |
Traders City price 50.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
The LSC-13L cage translation stage mounts onto two Ø6 mm cage rods, allowing optics on the movable carriage to translate along the optical axis. Optic mounting bases are available in three versions: LSC-13LA fixed type, LSC-13LB XY translation type, and LSC-13LC rotational type, enabling position and rotation adjustment to compensate for cumulative assembly tolerances.

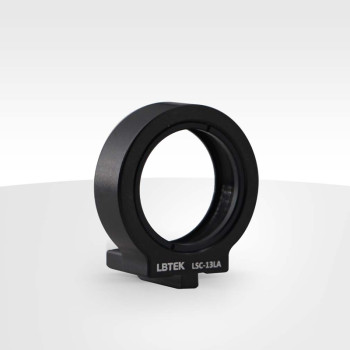

The LSC-13LA mount is designed for Ø25.4 mm optics with a maximum thickness of 7 mm and is compatible with the LSC-13L cage translation stage. The central SM1-threaded bore allows mounting of optics, SM1 lens tubes, or adapters.
