| Coad | 670838 | Type | 30mm Coaxial System XY Translation Mount | |
| Optical Component Diameter (mm) | 12.70 | Optical Element Thickness (mm) | 8.00（MAX） | |
| XY Travel Range (mm) | ±1.5 | XY Adjustment Accuracy (mm/turn) | 0.25 | |
| Clear Aperture | 11.4mm | Material | 6061-T6 Aluminum Alloy | |
| Z-Axis Travel | ±1.5mm | Z-Axis Adjustment Accuracy | 0.5mm/turn | |
| Z-Axis Dial Graduation | 10mm/division | Adjuster Specification | M5 x 0.25 x 2 | |
| Center Threaded Hole Specifications | SM05 Internal Thread | Optic Mounting Method | 30mm Cage System Mounting | |
| Surface Treatment | Black Anodized | Included Retaining Ring | SM05R x 1 |
Designed for mounting Ø12.7 mm / Ø25.4 mm optics, enabling precise adjustment along X, Y, and Z axes. The stage offers XY travel ranges of ±1.5 mm / ±2.0 mm / ±2.5 mm, and Z-axis travel of ±1.5 mm. Adjustment resolution is 0.25 mm/rev for XY axes and 0.5 mm/rev for the Z-axis. The central bore features SM05/SM1 internal threads and includes a retaining ring for securing optics. Compatible with both 30 mm and 60 mm cage systems, with Ø6 mm through-holes equipped with M3 setscrews (compatible with 1.5 mm hex key) for locking cage rods. The base includes threaded mounting holes for direct connection to optical posts.

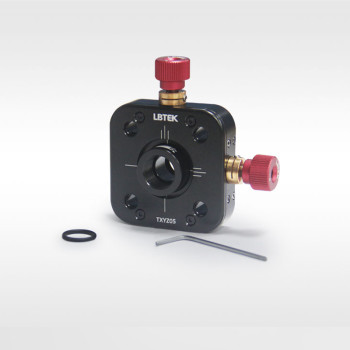

TXYZ05 is designed for mounting Ø12.7 mm optics and allows fine adjustment along X, Y, and Z axes, with a travel range of ±1.5 mm in each direction. The center bore features SM05 internal threads and includes an SM05R retaining ring for securing optics, and is also compatible with Ø12.7 mm lens tubes. Fully compatible with 30 mm cage systems, the stage has Ø6 mm through-holes with setscrews for locking cage rods. During Z-axis movement, the dial face is graduated with a resolution of 0.5 mm/rev and 10 μm per division. Two M4-threaded mounting holes on the bottom allow direct mounting to optical posts.
