| Coad | 670835 | Type | 30mm Coaxial System XY Translation Mount | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | 10.00（MAX） | |
| XY Travel Range (mm) | ±1.0 | XY Adjustment Accuracy (mm/turn) | 0.25 | |
| Clear Aperture | 23.0mm | Material | 6061-T6 Aluminum Alloy | |
| Adjuster Specification | M5 x 0.25 x 2 | Center Threaded Hole Specifications | SM1 Internal Thread | |
| Bottom Threaded Hole Specifications | M4 | Application Scenarios | Coaxial System or Free Space | |
| Surface Treatment | Black Anodized | Drive Type | - | |
| Included Retaining Ring | SM1R x 1 | |||
Designed for mounting Ø25.4 mm or Ø50.8 mm optics. Provides XY travel ranges of ±1 mm, ±2 mm, or ±3 mm, with an adjustment resolution of 0.25 mm/rev. Model STXY1-S features micrometer head drive with a fine resolution of 10 μm/div. The stage is available with SM1 or SM2 internal threads and includes SM1R or SM2R retaining rings. Compatible with both 30 mm and 60 mm cage systems. For the 30 mm cage system, a version with a magnetic quick-release plate is available, enabling rapid removal of optics within the cage system.

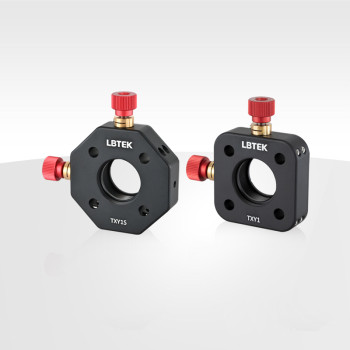

Both TXY1 and TXY1S are designed for mounting Ø25.4 mm optics and are equipped with two adjusters that allow fine adjustment of the optic’s position in both X and Y directions, with a travel range of ±1 mm. The XY translation module features SM1 internal threads and includes an SM1R retaining ring for securing optics up to 10 mm thick, and is compatible with Ø25.4 mm lens tubes. The rear panel also has a central SM1-threaded through hole, enabling direct connection to Ø25.4 mm lens tubes. TXY1 has no threaded mounting holes at the bottom and cannot be mounted directly to optical posts. It is designed for integration into 30 mm cage systems and is equipped with setscrews around the edges for securing Ø6 mm cage rods. TXY1S features M4-threaded mounting holes on both sides of its base, allowing direct mounting to optical posts, while remaining fully compatible with 30 mm cage systems.
