| Code | 670815 | Type | Infrared Detection Cards | |
| Size | 85mm × 20mm × 1mm | Operating Temperature | 50°Ca | |
| Coating Material | Up-Conversion Fluorescent Material | Applicable Wavelength Range | 700nm – 1600nm | |
| Detection Film Thickness | 300µm | Excitation Power Density (Fluorescent Lamp) | 3.82µW/mm² @ 980nm; 65µW/mm² @ 1550nm | |
| Excitation Power Density (Dark Environment) |
0.85µW/mm² @ 980nm; 5.7µW/mm² @ 1550nm |
Active Area |
50mm × 20mm |
Traders City price 20.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller

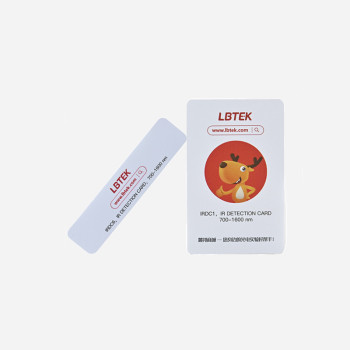

Suitable for wavelengths from 700–1600 nm. This card uses the stimulated emission characteristics of up-conversion fluorescent material to convert infrared beams into visible light for easy observation. For convenient use during optical alignment, the photosensitive area does not cover the entire card — a dedicated holding area is provided on one end. The minimum excitation power density in a dark environment is 0.85 µW/mm² @ 980 nm.
