| Coad | 670798 | Type | 16mm Coaxial Quick-Release Mounting Plate | |
| Optical Component Diameter (mm) | 12.70 | Optical Element Thickness (mm) | 6.80（MAX） | |
| Clear Aperture（mm） | 11.40 | Mounting Plate Thickness (mm) | 10.20 | |
| Dimensions | 25.0 x 27.5 x 10.0mm | Material | 6061-T6 Aluminum Alloy | |
| Optical Component Mounting Method | - | Center Hole Specification | - | |
| Surface Treatment | Black Anodized | Included Retaining Ring | - |
LBTEK’s 16 mm coaxial quick-release mounting plate is compatible with 16 mm coaxial systems and is designed for quickly inserting or removing optical components from an assembled coaxial system without disturbing other components or the optical alignment. Two quick-release options are available: spring-loaded and snap-in, meeting the requirements of various application scenarios.

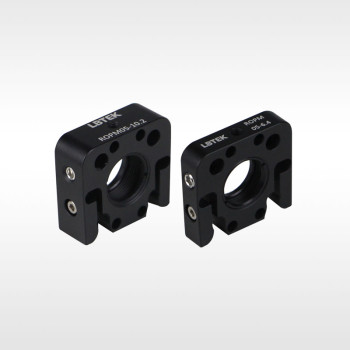

LBTEK’s 16 mm removable flexible coaxial mounting plate is designed for mounting Ø12.7 mm optical components. It features an SM05-threaded through hole and uses two retaining rings for secure mounting. The ROPM05-6.4 model supports optical components up to 3 mm thick, while the ROPM05-10.2 model supports components up to 6.8 mm thick. The bottom includes an M3 threaded hole for connection to optical posts, and four coaxial rod through-holes are compatible with 16 mm coaxial systems. The side is equipped with an M2 socket head cap screw and an M3 cup-point setscrew for locking, both of which can be tightened with a 1.5 mm hex key. The flexible clamping design allows convenient insertion or removal of small sections of the coaxial system.
