| Coad | 670796 | Type | 16mm Coaxial Quick-Release Mounting Plate | |
| Optical Component Diameter (mm) | 12.70 | Optical Element Thickness (mm) | 3.50（MAX） | |
| Clear Aperture（mm） | 11.40 | Mounting Plate Thickness (mm) | 7.00 | |
| Dimensions | 21.2 x 26.5 x 7.0mm | Material | 6061-T6 Aluminum Alloy | |
| Optical Component Mounting Method | - | Center Hole Specification | - | |
| Surface Treatment | Black Anodized | Included Retaining Ring | SM05R x 2 |
LBTEK’s 16 mm coaxial quick-release mounting plate is compatible with 16 mm coaxial systems and is designed for quickly inserting or removing optical components from an assembled coaxial system without disturbing other components or the optical alignment. Two quick-release options are available: spring-loaded and snap-in, meeting the requirements of various application scenarios.

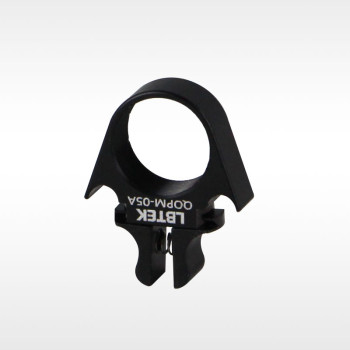

LBTEK’s 16 mm spring-loaded quick-release coaxial plate is compatible with 16 mm coaxial systems. It uses a spring-loaded mechanism combined with a dovetail groove to enable quick release and can be inserted from any direction of the coaxial system. The center features an SM05-threaded through hole with two included SM05R retaining rings, allowing the mounting of Ø12.7 mm optical components with a maximum thickness of 3.5 mm.
