| Coad | 670787 | Type | 30mm Coaxial Quick-Release Mounting Plate | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | 3.50（MAX） | |
| Clear Aperture（mm） | 23.00 | Mounting Plate Thickness (mm) | 7.60 | |
| Dimensions | 44.4 x 39.0 x 7.6mm | Material | 6061-T6 Aluminum Alloy | |
| Optical Component Mounting Method | - | Center Hole Specification | - | |
| Surface Treatment | Black Anodized | Included Retaining Ring | SM1R x 2 |
LBTEK’s 30 mm Coaxial Quick-Release Mounting Plates are compatible with the 30 mm coaxial system and allow optical components to be quickly inserted or removed from an assembled coaxial setup without disturbing other components or affecting optical alignment. Three quick-release options are available—magnetic, spring-loaded, and snap-in—to meet various application needs. The magnetic quick-release version enables insertion and removal without changing the position of the coaxial plate.

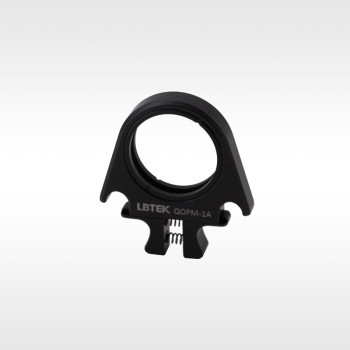

LBTEK 30 mm Spring-Loaded Quick-Release Coaxial Plate is compatible with the 30 mm coaxial system. It uses a spring-loaded mechanism in combination with a dovetail groove to enable quick insertion and removal from any direction within the coaxial system. The plate features a central SM1-threaded through hole and comes with two SM1R retaining rings, allowing secure mounting of optical components up to 3.5 mm thick.
