| Coad | 670786 | Type | 30mm Coaxial Quick-Release Mounting Plate | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | - | |
| Clear Aperture（mm） | - | Mounting Plate Thickness (mm) | - | |
| Dimensions | 42.0 x 42.0 x 6.9mm | Material | 6061-T6 Aluminum Alloy | |
| Optical Component Mounting Method | - | Center Hole Specification | - | |
| Surface Treatment | Black Anodized | Included Retaining Ring | - |
LBTEK’s 30 mm Coaxial Quick-Release Mounting Plates are compatible with the 30 mm coaxial system and allow optical components to be quickly inserted or removed from an assembled coaxial setup without disturbing other components or affecting optical alignment. Three quick-release options are available—magnetic, spring-loaded, and snap-in—to meet various application needs. The magnetic quick-release version enables insertion and removal without changing the position of the coaxial plate.

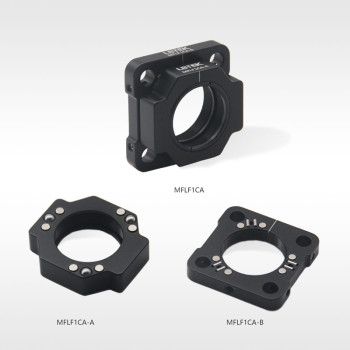

LBTEK 30 mm Magnetic Quick-Release Coaxial Plate MFLF1CA consists of a rear mount (MFLF1CA-B) and a front plate (MFLF1CA-A), which are held together by neodymium magnets and 440C precision positioning steel balls, allowing the front plate to be easily inserted or removed from the coaxial system during use. With the included SM1R retaining ring, optical components up to 6.1 mm thick can be secured in the SM1 internal thread of the front plate. The rear plate also features an SM1-threaded hole for attaching additional components. Four Ø6 mm through-holes on the sides are compatible with the 30 mm coaxial system and can be secured to coaxial rods with M3 locking screws. An M4 threaded hole at the bottom allows convenient mounting for free-space applications.
