| Coad | 670783 | Type | 30mm Coaxial Quick-Release Mounting Plate | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | 6.00（MAX） | |
| Clear Aperture（mm） | 23.00 | Mounting Plate Thickness (mm) | 10.20 | |
| Dimensions | 53.0 x 14.0 x 10.2mm | Material | 6061-T6 Aluminum Alloy | |
| Optical Component Mounting Method | - | Center Hole Specification | Threaded Hole | |
| Surface Treatment | Black Anodized | Included Retaining Ring | - |
LBTEK’s 30 mm Coaxial Quick-Release Mounting Plates are compatible with the 30 mm coaxial system and allow optical components to be quickly inserted or removed from an assembled coaxial setup without disturbing other components or affecting optical alignment. Three quick-release options are available—magnetic, spring-loaded, and snap-in—to meet various application needs. The magnetic quick-release version enables insertion and removal without changing the position of the coaxial plate.

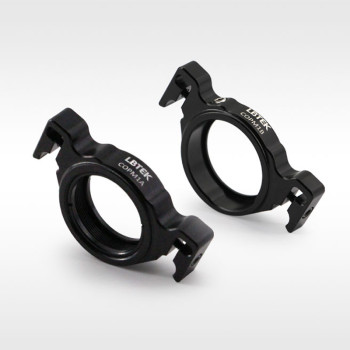

LBTEK 30 mm Snap-In Flexure Coaxial Mounting Plates are designed for mounting Ø25.4 mm optical components. The COPM1B version features a clear aperture and secures optics with a nylon-tipped setscrew, recommended for components with a minimum thickness of 5 mm. The COPM1A version has an SM1-threaded through hole and uses dual retaining rings to secure optics up to 6 mm thick. Two coaxial rod through-holes are compatible with the 30 mm coaxial system, with side M2.5 socket head screws for flexure locking, tightened using a 2 mm hex key. The snap-in design allows easy insertion and removal of optical components.
