| Coad | 670773 | Type | 16mm Coaxial Mounting Plate | |
| Optical Component Diameter (mm) | 16.00 | Optical Element Thickness (mm) | - | |
| Clear Aperture（mm） | - | Material | 6061-T6 Aluminum Alloy | |
| Dimensions | 25.0 x 25.0 x 5.0mm | Optical Component Mounting Method | Setscrew Fixing | |
| Surface Treatment | Black Anodized | |||
LBTEK offers a variety of coaxial mounting plates made of aluminum alloy with a black anodized finish, suitable for mounting various sizes of optical components or lens tubes. The central mounting hole supports two fixing methods: retaining ring fixing for Ø5–Ø12 mm and Ø12.7 mm optical components, and nylon-tipped setscrew fixing for Ø16 mm optics. All coaxial plates feature four coaxial rod through-holes that allow free sliding along the rods, with each through-hole equipped with an M4 locking screw that can be tightened using a 2.0 mm hex key.

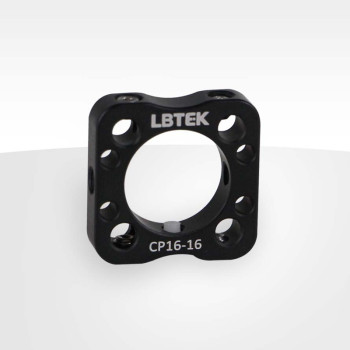

LBTEK 16 mm Coaxial Mounting Plate CP16-16 uses a nylon-tipped setscrew to secure Ø16 mm optical components, featuring a compact structural design. It includes four coaxial through-holes for Ø4 mm rods, which can be fixed using side M4 setscrews and adjusted with a 2.0 mm hex key. M3 threaded holes on both sides allow direct mounting onto rods, and the plate can also be mounted onto a 16 mm coaxial cube using four M2.5 socket head cap screws.
