| Coad | 670764 | Type | 30mm Coaxial Mounting Plate | |
| Optical Component Diameter (mm) | - | Optical Element Thickness (mm) | - | |
| Clear Aperture（mm） | - | Mechanical Mounting Specification (mm) | 32.00 | |
| Dimensions | 46.0 x 46.0 x 12.5mm | Material | 6061-T6 Aluminum Alloy | |
| Optical Component Mounting Method | Nylon-Tipped Setscrew Fixing | Surface Treatment | Black Anodized | |
| Included Retaining Ring | - | |||
LBTEK offers a wide range of coaxial mounting plates designed for mounting Ø25.4 mm optical components, lens tubes, or collimated LED light sources. Both rectangular and round shapes are available. The round version can be mounted into mechanical parts with SM2 internal threads or Ø50.8 mm clear apertures, featuring a central SM1-threaded through hole. The rectangular version can be directly inserted into the coaxial system, with three thickness options of 4 mm, 9 mm, and 12.5 mm. Center options include SM05, SM1, and RMS threads or Ø25.4 mm, 30.5 mm, and 32 mm clear apertures. All coaxial plates come with four coaxial rod through-holes compatible with the 30 mm coaxial system, allowing free sliding along the rods. Each through-hole is equipped with an M3 or M4 locking screw, which can be tightened using a 1.5 mm or 2 mm hex key.

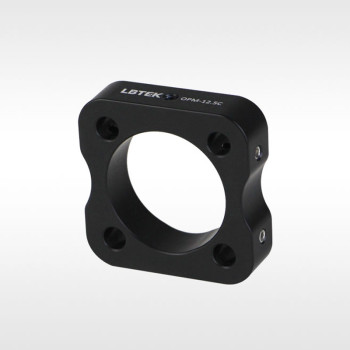

LBTEK 30 mm Coaxial Light Source Mounting Plate features a clear aperture designed for mounting Ø32 mm LED collimated light sources. The plate includes four through-holes compatible with the 30 mm coaxial system, allowing it to slide freely along the coaxial rods and be secured using the side M4 cup-point setscrews. The light source is fastened by an M4 nylon-tipped setscrew on the top of the plate, which can be tightened with a 2 mm hex key. An M4 mounting hole is provided at the bottom. Supplied accessories include two cup-point setscrews, one nylon-tipped setscrew, and one 2 mm hex key.
