| Code | 670760 | Type | Coaxial Optical Mounting Plate | |
| Material | 6061-T6 Aluminum | Surface Finish | Black Anodized | |
| Maximum Optics Thickness | 3.8mm | Compatible Optics Diameter | Ø12.7mm | |
| Dimensions | 36.9mm × 24.9mm × 12.9mm | Weight | 0.022kg | |
| Included Accessory |
2.0mm Hex Key |
X-Axis Travel Range |
±6.0mm |
|
| Center Thread Specification |
SM05 |

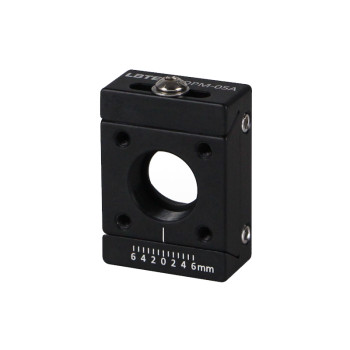

The LBTEK 16 mm Coaxial Linear Translation Plate consists of a fixed plate and a movable plate. One plate is fixed in a 16 mm coaxial system or free space, while the other slides along a dovetail track, providing ±6 mm travel for precise positioning.
The fixed plate has four coaxial blind holes and is secured by four M4 setscrews on the side. The movable plate includes M3 threaded holes for coaxial rod mounting via M3 setscrews.
The center SM05-threaded through-hole allows installation of Ø12.7 mm optics (up to 3.8 mm thick) using the included SM05R retaining ring. The bottom has an M3 threaded mounting hole for optical post connection.
Engraved ±6 mm graduations enable manual positioning, and the top M3 screw locks the plate after adjustment. All adjustments are performed with a 2 mm hex key.
Note: The two M2.5 preload ball screws are factory-adjusted and must not be removed, as this could affect smooth motion and tactile feedback.
