| Code | 670740 | Type | Six-Axis Optical Adjustment Mount | |
| Surface Finish | Black Anodized | Threaded Holes / Quantity | M4 Threaded Holes / 4pcs | |
| Body Material | 6061-T6 Aluminum | Included Wrench | 2.0mm / 1pc | |
| Platform Size | 42.0mm × 12.7mm | Maximum Adjustment Range | 6.0mm | |
| Included Clamp Arm Model | CA-1 | Included Screws | M3×6 Round-Head Hex Socket Screws / 2pcs |
Traders City price 45.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller

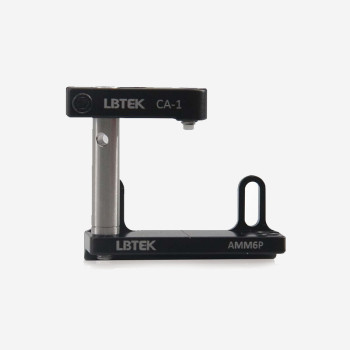

The LBTEK Prism Mounting Platform features a platform size of 42.0 mm × 12.7 mm and can be mounted onto the AMM6-1A Six-Axis Optical Adjustment Mount’s rotation ring. The platform is installed using two included M3 round-head hex socket screws (2.0 mm hex key provided). The two M3 connection screws allow a maximum adjustable range of 6 mm through the slotted holes, enabling precise positioning of optical components along the rotation axis.
The platform includes four M4 threaded holes and comes with a CA-1 height-adjustable clamping arm, which can be installed and adjusted using the supplied 2.0 mm hex key.
