| Coad | 670741 | Type | Free-Space Rotation Mount | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | 14.00（MAX） | |
| Center Height (mm) | 27.00 | Rotation Angle (°) | 360 | |
| Material | 6061-T6 Aluminum Alloy | With U-Shaped Slot (Yes/No) | YES | |
| Graduation Accuracy | 2° | Adjustment Precision | - | |
| Mounting Hole Specifications | SM1 Threaded Hole | Bottom Threaded Hole Specifications | M4 | |
| Radial Runout | 30μm | Surface Treatment | Black Anodized | |
| Included Retaining Ring | 1 | Included Wrench | 2.0mm Hex Key x 1 |

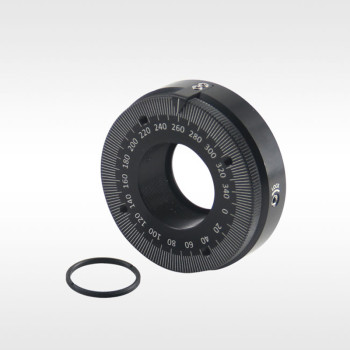

LBTEK free-space rotation mount is designed for mounting anisotropic optical components (such as polarization optics). It features a central SM-series internal threaded mounting hole and includes one SM-series retaining ring for securing the optical element. The mount allows 360° continuous rotation with a graduation accuracy of 2° and numeric markings every 20°. A side set screw is provided to lock the rotation securely. The base has an M4-threaded hole for easy connection to optical posts.
The LBTEK CMRM1 rotation mount is designed for mounting Ø25.4 mm anisotropic optical components. It allows 360° rotation with 2° graduation accuracy and numeric markings every 20°. A side set screw securely locks the rotation, and the base includes an M4-threaded hole for convenient post mounting.
