| Code | 670738 | Type | 45° Optical Adjustment Mounts | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodized | |
| Minimum Optics Thickness | 3mm | Maximum Clamping Diameter | Ø25.4mm | |
| Mounting Holes | M4 Countersunk Holes | Type | Mirror Mount |
Material: 6061-T6 Aluminum
Adjustment Range: ±4° Pitch/Yaw
Adjustment Resolution: 0.4° per turn
Mounting Holes: M4

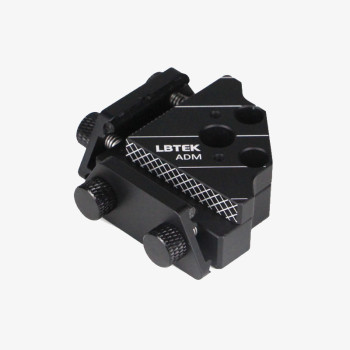

The LBTEK Optical Delay Line Mirror Mount is a versatile fixture designed for optical delay applications, featuring two orthogonal mounting surfaces for standard mirrors. The kit includes the ADM Mirror Mount and the APM3-1 Platform Mount, which can be quickly assembled or detached using the supplied hex key via M4 screws.
Each ADM mount plate is equipped with two thumb screws, two springs, and two plastic rods for easy optical component clamping. The mount provides two precisely machined mounting faces to ensure that the mirrors are positioned at a precise 90° angle, allowing the input beam to undergo optical delay via two reflections and then return parallel to the incoming beam.
The APM3-1 platform features three M6×0.25 fine-pitch adjustment screws, enabling ±4° pitch/yaw adjustment with a resolution of 0.4° per turn. The platform’s M4 mounting holes allow secure attachment to optical posts.
