| Code | 670737 | Type | 45° Optical Adjustment Mounts | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodized | |
| Minimum Optics Thickness | 6mm | Compatible Optics Size | Elliptical – Major Axis 18mm, Minor Axis 12.7mm | |
| Clamp Interface Diameter | Ø12.7mm |
Traders City price 84.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Available for Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm optics
Optics secured with set screws
Compatible with standard O-type mirror mounts

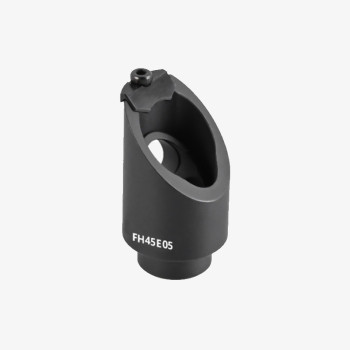

LBTEK 45° Optical Adjustment Mounts enable 90° beam redirection. The fixed 45° mount supports optics with diameters of Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm, secured via a top-mounted screw.
The clamping section offers two connection options: lens-tube (cage) connection and threaded connection. The fixed mirror mount is compatible with standard O-type mirror mounts and can be fully integrated into 30 mm cage systems.
