| Coad | 670729 | Type | Z-Axis Translation Mount | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | 7.20（MAX） | |
| Center Height (mm) | 24.00 | Travel（mm） | 1.00（MAX） | |
| Micrometer Head Graduation Accuracy | 1.0mm per Division | Micrometer Head Precision | 50.0mm per Revolution | |
| Compatible Applications | 30.0mm Cage System | Material | 6061-T6 Aluminum Alloy | |
| Optical Component Mounting Method | Secured with Dual Retaining Rings | Thread hole specification | M4 Threaded Hole x 1 | |
| Surface Treatment | Black Anodized | Included Wrench | 2.0mm x 1 | |
| Included Retaining Ring | SM1R x 2 | |||

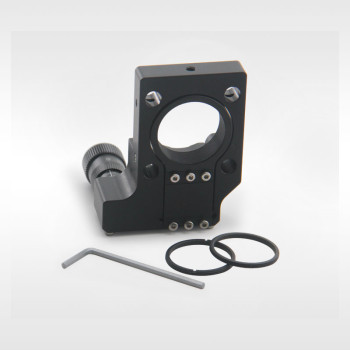

LBTEK Z-axis translation mounts provide precise optical positioning along the beam axis. They offer repeatable Z-axis travel, ideal for fiber alignment or compensating focus errors in spatial filtering applications within cage systems. The translation ring features SM1 (1.035"-40) internal threads, and movement is driven by a precision micrometer head with 1 µm graduations and a clear travel range scale. The micrometer can be adjusted using the knurled knob or a 2 mm hex key. Two SM1R retaining rings are included for securing Ø1″ (25.4 mm) optics up to 7.2 mm thick. The MFT model is compatible with 30 mm cage systems and includes M4 threaded holes for free-space mounting, while the MFP model provides both M4 and M6 threads for versatile free-space integration.
LBTEK Z-axis translation mounts provide precise optical positioning along the beam axis. Within a 30 mm cage system, they deliver repeatable 1.0 mm Z-axis travel, making them ideal for fiber alignment or compensating focus errors in spatial filtering applications. The translation ring features SM1 (1.035"-40) internal threads, and motion is driven by a precision micrometer with 1 µm graduations and a clearly marked travel range. The micrometer can be adjusted using the knurled knob or a 2 mm hex key. Two SM1R retaining rings are included for securing Ø1″ (25.4 mm) optics up to 7.2 mm thick. A single M4 threaded hole is provided for free-space mounting. Each LBTEK Z-axis translation mount comes with a 2 mm hex key for convenient use.
