| Coad | 670718 | Type | Adjustable-Diameter Lens Mount | |
| Optical Component Diameter (mm) | 7.5 - 45 | Optical Element Thickness (mm) | - | |
| Clear Aperture（mm） | - | Center Height (mm) | - | |
| Material | 6061-T6 Aluminum Alloy Body + Black POM Clamping Arm | Internal Thread Hole Specification | - | |
| Bottom Threaded Hole Specifications | M4 | Cage Rod Mounting Method | - | |
| Surface Treatment | Black Anodized | Included Retaining Ring | - |

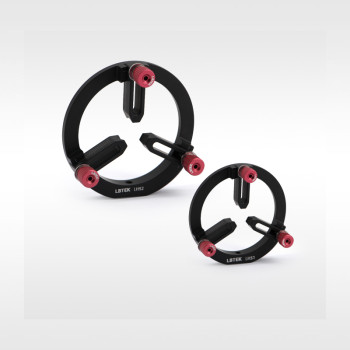

LBTEK adjustable-diameter lens mounts are designed for mounting non-standard size optical components. The POM clamping arm features a V-groove on one side and a flat surface on the other, allowing reversible use. Optical components can be manually aligned, and the arm is locked by tightening the knob. All mounts have an M4 threaded hole at the base for mounting on Ø12.7 mm posts.
LBTEK adjustable lens mounts are designed for mounting non-standard size optical components. The POM clamping arm features a V-groove on one side and a flat surface on the other, allowing reversible use and diameter adjustment for different optics. The arm includes 1 mm and 5 mm reference markings for easy position recall and repeatable alignment. The base is equipped with an M4 threaded hole for mounting on Ø12.7 mm posts.
