| Code | 667661 | Type | Indexed Mounts | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodized | |
| Maximum Optical Element Thickness | 3.5mm | Optic Retention Method | Dual Retaining Rings | |
| Adjuster Specification / Quantity |
M6 × 0.25 / 2 adjusters |
Weight |
0.14kg |
|
| Included Wrench |
HWS-2 |
Mounting Hole Specification / Quantity | M4 Countersunk Holes / 3 | |
| Locking Method |
Axial Locking with Locknut |
Optical Axis Height |
25.4mm |
|
| Included Screws |
M4 × 10 Socket Head Cap Screws |
Thread Specification |
SM1 |
|
| Adjustment Sensitivity |
0.4° per revolution |
Adjustable Tip/Tilt Range |
± 4° |
Holds Ø25.4 mm optics up to 3.5 mm thick
Dual retaining ring optic mounting
±4° tip/tilt adjustment range
0.4° per revolution adjustment sensitivity
Removable adjuster knobs
Three M4 countersunk holes for versatile mounting options

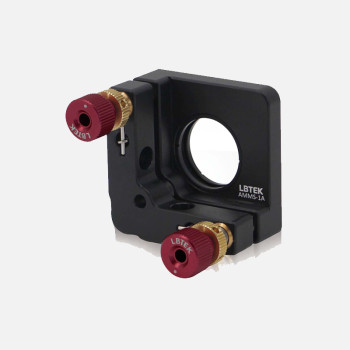

LBTEK Square Optical Mount is designed to hold Ø25.4 mm optics up to 3.5 mm thick. Using the included SM1R retaining rings and SM1 spanner wrench, the optic is securely fixed in place. Two M6×0.25 adjuster screws with locknuts provide ±4° pitch and yaw adjustment with 0.4°/rev sensitivity.
The mount features three M4 countersunk holes, allowing installation for left-hand, right-hand, or face-up operation on a post. The adjuster knobs are removable — after removal, adjustment can be made using the included HWS-2 2.0 mm hex key with knob or a standard 2.0 mm hex key, enabling convenient use in confined spaces.
