| Code | 667660 | Type | Indexed Mounts | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodized | |
| Maximum Optical Element Thickness | 6mm | Compatible Optical Element Diameter | Ø25.4mm | |
| Optic Retention Method |
Retaining Ring |
Mounting Hole Specification / Quantity |
M4 / 3 holes |
|
| Indexing Positions |
16 positions |
16 indexed positions with 22.5° increments
Three M4 threaded mounting holes
Compatible with Ø25.4 mm optics
Easy operation with excellent repeatability

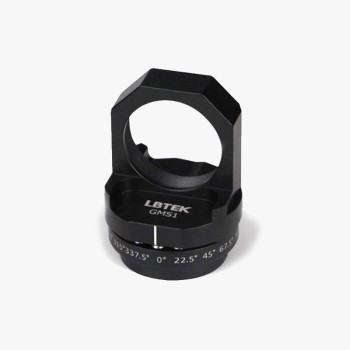

LBTEK Indexed Mount uses a retaining ring to secure Ø25.4 mm optics up to 6 mm thick. It features 16 indexed positions, each incremented by 22.5°. This mount is ideal for redirecting a laser beam to multiple targets on an optical table.
The product consists of a top plate and a base plate, joined by neodymium magnets. The base plate is engraved with angular position markings for quick alignment, ensuring high precision and repeatability. A distinct tactile click is felt when each position is engaged.
Three M4 threaded holes in the base plate allow the mount to be fixed to a post. A small through-hole located directly under the 90° mark can be adjusted with a 2 mm ball driver, providing sufficient torque when securing the mount to the post.
