| Code | 670655 | Type | Driver Controllers and Accessories | |
| Temperature Control Range | -20 ~ +80℃ | Temperature Control Accuracy | 0.0625℃ | |
| Output Voltage | -80 ~ +80V | Rated Current | 10A | |
| Peak Current | 12.5A | Control Type | Panel Debugger / Computer | |
| Temperature Sensor | NCT3950 | Applicable TEC Modules | 12706, 12705, 12708, 12710, 12715 (series connection) | |
| Communication Interface | TTL232 to RS232 | Soft Start Time | 500ms | |
| Efficiency | >81% | Input Current | 10A (AC) | |
| Power Supply | 200V (AC) | Control Algorithm | Integral-Separated PID Control | |
| Dimensions (L × W × H) | 203 × 250 × 80mm |
Traders City price 3664.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Temperature Control Accuracy
0.0625 ℃
Constant & Variable Temperature Control
NCT3950 temperature sensing module

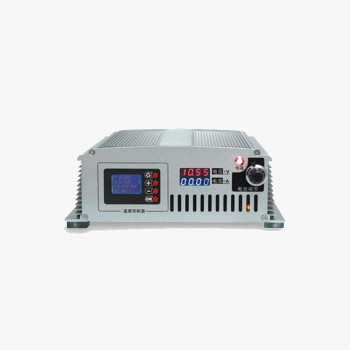

LBTEK TEC Temperature Controller is a high-power-density controller with a temperature control range of -20 ~ +80 ℃ and an accuracy of 0.0625 ℃. For constant temperature control, users can directly adjust via the front panel. For variable temperature control, the controller can be connected to a TTL232 opto-isolation module, which then interfaces with a computer for software-based upper-level control. Each LBTEK TEC Temperature Controller is supplied with a TTL232 opto-isolation module.
