| Coad | 670649 | Type | Detachable Filter Mount | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | 9.00（MAX） | |
| Material | 6061-T6 Aluminum Alloy | Mounting Hole Specifications | - | |
| Number of Optical Elements Mounted | - | Mounting Thread Specification | SM1 | |
| Surface Treatment | Black Anodized | Weight | - | |
| Included Retaining Ring | 1 | |||
The LBTEK detachable filter mount is designed to hold a single Ø25.4 mm filter, or other Ø25.4 mm optical elements with a maximum thickness of 9 mm. It is suitable for both free-space setups and 30 mm cage systems. The dovetail quick-release design allows the optical element section to be detached independently, enabling fast replacement or removal of optics without extensive system disassembly during experiments. The mount also features a light-blocking design at the contact surfaces, using sealing materials to prevent light leakage at the joints.

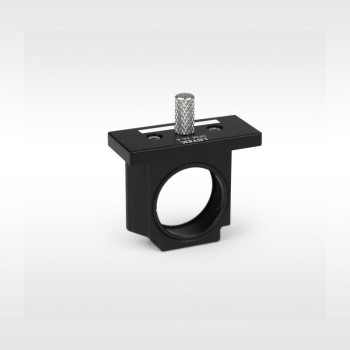

The LBTEK detachable filter mount DFM-1A-A is designed to hold Ø25.4 mm optical elements with a maximum thickness of 9 mm, used in combination with the outer housing of the DFM-1A. The slider features a dovetail design for quick assembly and removal. One SM1R retaining ring is included.
