| Coad | 670644 | Type | Sliding Filter Mount | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | 6.00（MAX） | |
| Material | 6061-T6 Aluminum Alloy | Mounting Hole Specifications | - | |
| Mounting Thread Specification | SM1 | Surface Treatment | Black Anodized | |
| Included Retaining Ring | SM1R x 2 | |||
The LBTEK sliding filter mount features a modular design consisting of a main body and sliders, allowing filters or other optical elements mounted on the sliders to be integrated into a 30 mm cage system. This design enables quick switching of optical elements without removing the main body. The mount comes with two SFM1-A sliders and can hold up to four Ø25.4 mm optical elements with a maximum thickness of 6 mm. Both the main body and sliders can be stacked for flexible configuration, and SFM1-A sliders are also available for separate purchase.

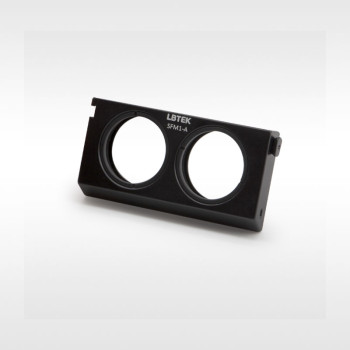

The LBTEK sliding filter slider is equipped with two SM1 threads for mounting Ø25.4 mm optical elements with a maximum thickness of 6 mm. Multiple sliders can be stacked, and when two sliders are connected vertically, they can be latched together. A ball-spring locking mechanism provides preload, ensuring that the sliders remain parallel. Used in combination with the SFM1 main body, the sliders enable quick switching of optical elements.
