| Coad | 670643 | Type | Sliding Filter Mount | |
| Optical Component Diameter (mm) | 25.40 | Optical Element Thickness (mm) | 6.00（MAX） | |
| Material | 6061-T6 Aluminum Alloy | Mounting Hole Specifications | M4 Threaded Hole | |
| Mounting Thread Specification | SM1 | Surface Treatment | Black Anodized | |
| Included Retaining Ring | SM1R x 4 | |||

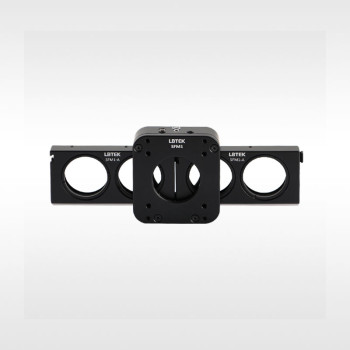

The LBTEK sliding filter mount features a modular design consisting of a main body and sliders, allowing filters or other optical elements mounted on the sliders to be integrated into a 30 mm cage system. This design enables quick switching of optical elements without removing the main body. The mount comes with two SFM1-A sliders and can hold up to four Ø25.4 mm optical elements with a maximum thickness of 6 mm. Both the main body and sliders can be stacked for flexible configuration, and SFM1-A sliders are also available for separate purchase.
The LBTEK sliding filter mount SFM1 comes with two SFM1-A sliders and can hold up to four Ø25.4 mm optical elements. The SFM1-A sliders are also available for separate purchase. The sliders are positioned within the main body using steel balls, V-grooves, and a dovetail rail, with a top locking screw to secure them after alignment. The base of the mount includes an M4 threaded hole for connection to optical posts. The main body is equipped with eight M3 threaded holes for compatibility with 30 mm cage systems, while the cover plate has four M2.5 threaded holes to allow stacked configurations.
