| Coad | 670621 | Type | V-Clamp Holder | |
| Clamping Diameter (mm) | 0.5 - 2.5 | Material | 303 Stainless Steel | |
| Dimension(mm) | 14.0 x 24.2 x 57.9 | Mounting Hole Specifications | M4 Threaded Hole | |
| Surface Treatment | Sandblasted + Passivated | |||

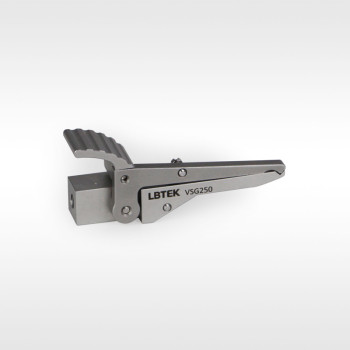

The LBTEK V-Clamp Holder is designed for clamping cylindrical components up to Ø2.5 mm. Its compact design makes it ideal for applications in limited spaces or where operation is restricted. The rear side features an M4 threaded hole for mounting onto optical posts.
The LBTEK V-Clamp Holder is designed for clamping cylindrical components with diameters from Ø500 µm to Ø2.5 mm, such as gradient-index (GRIN) lenses. Its compact design makes it suitable for applications with limited space or where operation is restricted. The stainless-steel body provides excellent rigidity, while the spring supplies stable clamping force to the clamp arm, ensuring precise positioning of cylindrical components within the setup. The base is equipped with an M4 threaded hole for mounting onto optical posts.
