| Coad | 670594 | Material | 6061-T6 Aluminum Alloy | |
| Type | Precision Optical Mount | Mounting Hole Specifications | M4 Threaded Hole x 2 | |
| Optical Component Diameter (mm) | 25.4 x 25.4 | Optical Component Thickness | 3.0mm（MIN） | |
| Pitch/Yaw Adjustment Range (°) | ±4 | Pitch/Yaw Adjustment Accuracy | 0.4°/turn | |
| Optical Axis Center Height (mm) | - | Maximum Linear Translation in Z Direction | 6.5mm | |
| Optical Component Mounting Method | Spring Clip Provides Elastic Deformation to Clamp Optical Element, Compatible with 2 mm Hex Wrench | Installation Orientation | Right-Handed System | |
| Surface Treatment | Black Anodized | Thread Locking Method | Radial Locking | |
| Included Retaining Ring | - | Included Wrench | - |
LBTEK Precision Optical Mount is commonly used for installing 0.5-inch, 1-inch, 1.5-inch, 2-inch, Ø11 mm cylindrical, and rectangular optical elements. It provides an angular adjustment range of ±4°. The base is equipped with either M4 threaded holes or countersunk holes for screws, allowing both left-handed and right-handed installation. Compared with LBTEK Standard O-Type 2D Optical Mounts, this series features lockable adjusters and a thicker back plate, enhancing stability. The mount achieves angle adjustment through three precision screw pairs, either M5×0.25 or M6×0.25, each with a locking function.

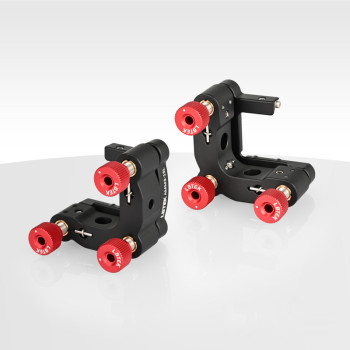

LBTEK Rectangular Precision Optical Mount secures optical elements by using adjustment screws that apply flexural deformation to a spring clip. It is commonly used for mounting 25.4 mm × 25.4 mm rectangular optical elements, supporting a minimum element thickness of 3.0 mm. The mount provides an angular adjustment range of ±4° and can be installed in either left-handed or right-handed orientation. The S-Type Precision Optical Mount achieves angle adjustment through three M6×0.25 precision screw pairs with a locking function. The mount is equipped with three M6×0.25-22KLB precision screw pairs, each with a flexure lock structure; the lock screws can be tightened with a 2.0 mm hex wrench to secure the adjusters. Each purchase of the LBTEK Rectangular Precision Optical Mount includes one 2.0 mm hex wrench and two M4 socket head cap screws.
