| Coad | 670578 | Material | 6061-T6 Aluminum Alloy | |
| Type | D-Shaped Optical Mount | Mounting Hole Specifications | M4 Countersunk Mounting Hole x 2 | |
| Optical Component Diameter (mm) | 25.40（D-shaped） | Optical Component Thickness | 6.0mm（MAX） | |
| Pitch/Yaw Adjustment Range (°) | ±4 | Thread Locking Method | - | |
| Optical Axis Center Height (mm) | 32.00 | Maximum Linear Translation in Z Direction | - | |
| Pitch/Yaw Adjustment Accuracy（°/turn） | 0.40 | Surface Treatment | Black Anodized | |
| Installation Orientation | Right-Handed System | Included Wrench | 1.5mm x 1 | |
| Included Screws | 2 | |||

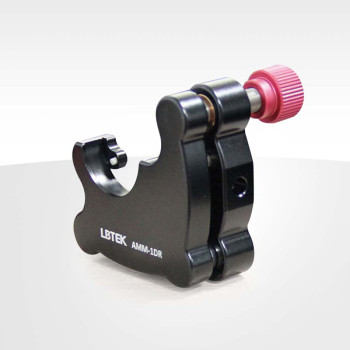

LBTEK D-Shaped Optical Mount is designed for installing D-shaped optical elements and is available in three mounting options: left-handed, right-handed, and fixed type. The optical element is secured with two nylon-tipped screws located on the back of the mount. The compact design maximizes the clear aperture, preventing obstruction of other beams in beam-splitting applications. The mount provides angular adjustment through two or three precision screw pairs, allowing an adjustment range of ±4°. The AMM3 series includes three precision screw pairs with threaded bushings featuring a flexure lock design; the locking screw can be tightened with a 2.0 mm hex wrench to secure the adjusters. The mount also includes M4 countersunk/threaded mounting holes on both the side and the bottom for flexible installation. Each purchase of the LBTEK D-Shaped Optical Mount 1-inch series includes two M4 socket head cap screws and one 1.5 mm hex wrench, while the 0.5-inch series includes one 1.5 mm hex wrench and one 2.0 mm hex wrench.
LBTEK D-Shaped Optical Mount is designed for Ø25.4 mm / Ø12.7 mm D-shaped optical elements. The elements are secured with two nylon-tipped screws on the back of the mount. The mount includes M4 countersunk/threaded mounting holes on both the side and the bottom for flexible installation. Each purchase of the LBTEK D-Shaped Optical Mount 1-inch series includes two M4 socket head cap screws and one 1.5 mm hex wrench, while the 0.5-inch series includes one 1.5 mm hex wrench and one 2.0 mm hex wrench.
